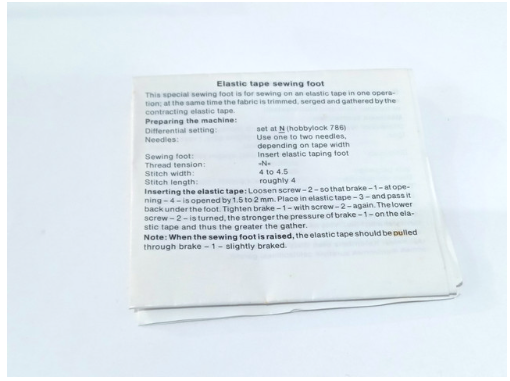

Preparation of machine

Differential setting: set at N (hobbylock 786)
Needles: use 1 to 2 needles, depending on tape width
Sewing foot: insert elastic taping foot
Thread tension: >N<
Stitch width: 4 to 4.5 mm
Stitch length: roughly 4

Inserting the elastic tape:

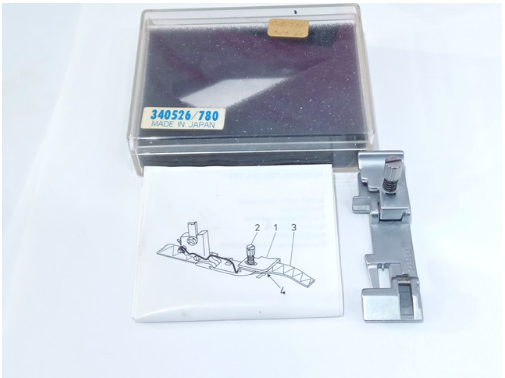

1. Loosen screw -2- so that brake -1- at opening -4- is opened by 1.5 to 2 mm. Place in elastic tape -3- and pass it back under the foot. Tighten brake -1- with screw -2- again. The lower screw -2- is turned, the stronger the pressure of brake -1- on the elastic tape and thus the greater the gather.

Note: When the sewing foot is raised, the elastic tape should be pulled through brake -1- slightly braked.

Condition: NEW
Made in Japan
* Product from PFAFF Original
